Ariens_Compact 24 Track CE Blower

Ariens_Compact 24 Track CE Blower

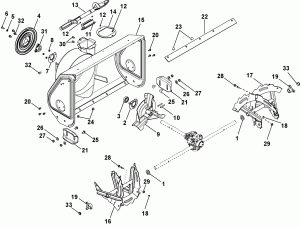

Auger and Impeller


IDParts NumberParts DescriptionNotesPurchase
16439000Washer, Flat Steel .812 x 1.50 x .135 (920014, 020, 316, 318) | (920014, 020, 316, 318)
15500917Bushing, Sleeve (920013, 317) | (920013, 317)
2428700FLANGE, BEARING
35406300Bearing
4268951Pulley, Spin Form Single Groove
56307400Washer, Lock .312 x .097
65947300Bolt, Hex .31-24 x .75
71014200Bearing Flange
86529700Nut, Locking Center .25-20
93835551Impeller
105803700Pin, Roll .250 x 1.75
11170300MOUNT, SNOW CLEAN OUT
126800028Rivet, Pop - .187
13170200DEVICE, SNOW CLEAN OUT
143889400Baffle
1552002500Housing, 22in. with Decal (920013, 317) | (920013, 317)
1552002600Housing, 24in. with Decal (920014, 020, 316, 318) | (920014, 020, 316, 318)
1653212300Rake, Right Hand, 20in. with Zerk (Includes Item 18) (920013, 317) | (Includes Item 18) (920013, 317)
1653213100Rake, Right Hand, 24in. with Zerk (Includes Item 18) (920014, 020, 316, 318) | (Includes Item 18) (920014, 020, 316, 318)
1753212400Rake, Left Hand, 20in. with Zerk (Includes Item 18) (920013, 317) | (Includes Item 18) (920013, 317)
1753213200Rake, Left Hand, 24in. with Zerk (Includes Item 18) (920014, 020, 316, 318) | (Includes Item 18) (920014, 020, 316, 318)
187061300Zerk, Fitting .25 x .125 Drive In
195500103Bushing, Rake Shaft
207400034Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
212483859Skid Shoe
223884359Blade, Scraper, 22in. (920013, 317) | (920013, 317)
223884459Blade, Scraper, 24in. (920014, 020, 316, 318) | (920014, 020, 316, 318)
236200209Bolt, Scraper Blade
246543100Nut, Locking Top Flange .31-18
256200004Bolt, Round Head Square Short Neck .38-16 x .75
266435700Washer, Flat Steel .38 x .875 x .083
276529600Nut, Locking Center .38-16
2853200500Shear Bolt with Nut (Includes item 29) | (Includes item 29)
296529700Nut, Locking Center .25-20 (Included in Item 28) | (Included in Item 28)
307001612Nut, Threaded Insert .38-16 (Included in Item 15) | (Included in Item 15)
31268901Pulley, Spin Form Single Groove
327411500Screw, Tapping Hex Washer Head Thread Rolling .31-18 x .50
335500109Bushing, Polyliner

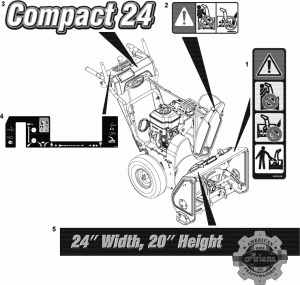

Decals


IDParts NumberParts DescriptionNotesPurchase
18000519Decal, Danger, Rotating Parts
28000520Decal, Danger
38000514Decal, Compact 22 (920013, 317) | (920013, 317)
8000334Decal, Compact 24 (920014, 020, 316, 318) | (920014, 020, 316, 318)
48000711Decal, Control (920013, 317) | (920013, 317)
8000712Decal, Control (920014, 316) | (920014, 316)
8000835Decal, Control (920020, 318) | (920020, 318)
5Decal, Housing, 22 (920013, 317) | (920013, 317)
Decal, Housing, 24 (920014, 020, 316, 318) | (920014, 020, 316, 318)

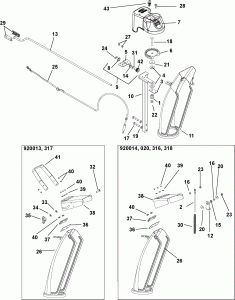

Discharge Chute and Crank


IDParts NumberParts DescriptionNotesPurchase
18320900Spring
2389000Rod, Deflector Cap | (920014, 020, 316, 318)
3398000Plate, Friction
41123800Friction Washer
51972451Bracket, Pinion Gear
63222900Chute Gear
752006400Compac Cover W/Shear Bolts Kit
83224300Pushnut
952000100Pinion Gear With Bracket | (Includes Items 5, 8, 14, 31 And 42)
103883751Pedestal, Chute
1152001500Chute, Discharge With Cap And Decal | (Includes Items 26, 36 - 41) (920013, 317)
1152002900Chute, Discharge With Cap And Decal | (Includes Items 26, 36 - 40) (920014, 020, 316, 318)
124115359Bracket, Cable Anchor | (920014, 020, 316, 318)
134338000Rod, Chute Crank
145500021Bushing, Polyliner
155500028Bushing, Polyliner | (920014, 020, 316, 318)
165501012Bushing, Sleeve | (920014, 020, 316, 318)
175958500Bolt, Hex .38-16 X 1.75
186224400Bolt, Round Head Square Neck .38-16 X 2.50
196308800Washer, Lock .38 X .094
206426600Washer, Flat Steel .281 X 1.000 X .063 | (920014, 020, 316, 318)
216400917Washer, Flat Steel .406 X 1.25 X .10
226542000Nut, Locking Top Flange .38-16
236500710Nut, Locking Center Flange .25-20 | (920014, 020, 316, 318)
246714500Pin, Spring Clip
256900508Cable, Deflector | (920014, 020, 316, 318)
263881559Chute, Compact, Manual | (920013, 317)
264092759Chute, Compact, Remote | (920014, 020, 316, 318)
277400034Screw, Tapping Hex Washer Head Thread Rolling .25-20 X .50
287400104Screw, Tapping Large Hex Washer Head Thread Rolling .25-20 X .50
297500203Knob, Chute Crank
308300013Spring | (920014, 020, 316, 318)
316400009Washer, Thrust .625 X 1.0 X .03
326200007Bolt, Round Head Square Short Neck .31-18 X 1.00 | (920013, 317)
336433600Washer, Flat Nylon .375 X .75 X 060 | (920013, 317)
346437200Washer, Flat Steel .344 X .688 X .065 | (920013, 317)
357500105Knob, Wing .31-18 | (920013, 317)
36628500Seal, Cap - 5.25
37170100Hinge, Cap
38174359Cap, Small Deflector-Manual | (920013, 317)
384092859Cap, Deflector, Remote | (920014, 020, 316, 318)
396400003Washer, Flat Steel .196 X .500 X .06
4068000281 Rivet, Pop .187 | (920013, 317)
406800028Rivet, Pop .187 | (920014, 020, 316, 318)
413212159Handle, Deflector | (920013, 317)
423735300Pinion Gear, Chute
434451600Clip, Cable Guide | (920014, 020, 316, 318)

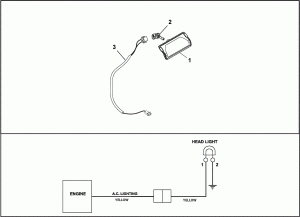

Electrical and Wiring Diagram


IDParts NumberParts DescriptionNotesPurchase
14812300Asm, Headlamp - Halogen 20W - 2 Shot | (Includes Item 2)
2432600Bult, Light-Halogen | (Included In Item 1)
34337300Wire Harness, Light

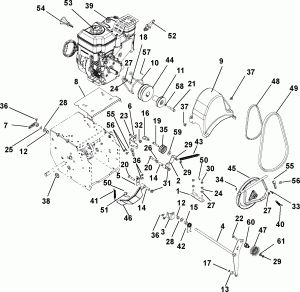

Engine and Belt Drive


IDParts NumberParts DescriptionNotesPurchase
1188400Strap, Engine Bolt | Strap, Engine Bolt (920020, 318)
52006200Frame With Engine Bolt Straps | Frame With Engine Bolt Straps (920013, 014, 316, 317)
2493667Traction Idler Arm
3495051BRKT, Mount - Idler Arm
44892167Wldmt, Attachment Idler Arm
5495251Brkt, Brake Mount
6657051Frame BRKT
71987100Arm, Clutch
83880851Baffle
93881000Cover, Belt
104561800Finger, Belt
114498800Sheave, Auger | Sheave, Auger (920020, 318) (920013, 014 Sn 110200 And Up) (920316, 317 Sn 003000 And Up)
52006500Sheave Kit- Compact | Sheave, Auger (920013, 014 Sn 075000 - 110199) (920316, 317 Sn 000101 To 002999)
125500026Bushing, Polyliner
135500820Bushing, Sleeve
145500106Bushing, Sleeve
155500107Bushing, Sleeve
165500113Spacer
175717600Retaining Ring, External .250 X .010
185947300Bolt, Hex .31-24 X .75
195957400Bolt, Hex .31-18 X 1.75
205958500Bolt, Hex .38-16 X 1.75
215901401Bolt, Hex .31-24 X 1.75
226200124Bolt, Round Head Square Short Neck .31-18 X 1.13
236212200Bolt, Round Head Square Short Neck .31-18 X .62
246307400Washer, Lock .31 X .097
256400005Washer, Wave
266436200Washer, Flat Steel .406 X .812 X .065
276437200Washer, Flat Steel .344 X .688 X .065
286441900Washer, Flat Steel .531 X 1.06 X .095
296500011Nut, Locking Center Jam .31-18
306529200Nut, Hex .31-18
316542000Nut, Locking Top Flange .38-16
326543100Nut, Locking Top Flange .31-18
336713500Pin, Hair, Internal .08 X .18 X 1.18
346944800Clip, Spring
3552007100Idler Kit
367400034Screw, Tapping Hex Washer Head Thread Rolling .25-20 X .50
377400108Screw, Tapping Captive .25-20 X .50
387500102Plug, Hole | (920013, 014, 316, 317)
398200712Engine, Ariens 208Cc 120V, 60W | (920013)
8200740Engine, Briggs And Stratton 205Cc, 240V, 60W | (920316)
8200813Engine, Briggs And Stratton 208Cc, 240V, 60W | (920318)
8200815Engine, Briggs And Stratton 208Cc, 120V, 60W | (920014 Sn 100000 And Up) (920020)
8200804Engine, Briggs And Stratton 205Cc, Recoil, 60W | (920317)
8200608Engine, Briggs And Stratton 205Cc, 120V, 60W | (920014 Sn 0750000 - 099999)
408300036Spring
418300104Spring
428300326Spring
438300538Spring | (920013, 014, 316, 317)
8300538Spring | (920020, 318)
444414000Sheave, Traction | (920013, 014 Sn 110200 And Up) (920316, 317 Sn 003000 And Up)
52006600Sheave Kit- Sno-Tek | (920013, 014 Sn 075000 - 110199) (920316, 317 Sn 000101 - 002999)
4553400Sheave, Traction | (920020, 318)
4552105000Plate, Swing Assembly
4652000500Arm, Brake W/Pad | (Includes Items 50 And 51)
4752007000Idler Kit
487200603V-Belt, Drive | (920013, 014, 316, 317)
7200114V-Belt, Drive | (920020, 318)
497200725V-Belt, Ha - Raw Edge Laminated
506800028Rivet, Pop – .187 | (2 Included With Item 46)
51180500Pad, Brake | (Included With Item 46)
5221547400Spark Plug | (920013)
21534100Spark Plug | (920014, 020, 316, 317, 318)
537500112Fuel Cap | (920013)
7500215Fuel Cap | (920014, 020, 316, 317, 318)
547500111Key, Push/Pull – Lct | (920013)
2460700Key With Cap | (920014, 020)
7500012Key, Push/Pull – Briggs & Stratton | (920316, 317, 318)
553374500Support Bushing, Swing Gate
567400111Screw, Tapping Hex Washer Head Thread Rolling .25-20 X .75
576606100Key-Square .188X.75X.188 | (920020, 318)
586307400Washer-Lock .31X.097
596446300Washer, Flat Steel .344X1.125X.135
601213100Spacer
616435700Washer, Flat Steel .38X.875X.083

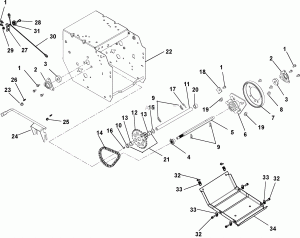

Friction Drive


IDParts NumberParts DescriptionNotesPurchase
17400034Screw, Tapping Hex Washer Head Thread Rolling .25-20 X .50
2383000Flange, Brg
35435200Bearing
44092600Sprocket, Pinion
54512800Shaft, Hex
6383100Carrier, Drive Disk
74743700Disc- Friction
87411500Screw, Tapping Hex Washer Head Thread Rolling .31-18 X .50
96714500Pin, Spring Clip
105500035Bushing, Sleeve
114512900Shaft, Pinion
12190600Pinion, Sprocket | (Included In Item 21)
135500111Bushing, Flange (Included In Item 21) | (Included In Item 21)
142466200Chain, Roller
156436100Washer, Flat Steel .630 X 1.005 X .062
167061300Zerk, Fitting .25 X .125 Drive In
175800205Pin, Groove Type E .125 X 1.00
18503500Tab, Anti - Rotation
196439200Washer, Flat Steel .505 X 1.00 X .062
205500029Bushing, Sleeve
2152601500Sprocket/Gear With Bushings (Includes Items 12 And 13) | (Includes Items 12 And 13)
224456159Frame
235500026Bushing, Polyliner
244655300Fork, Shift
255500028Bushing, Polyliner
266944800Clip, Spring
27373051BRKT, Cable Pulley
287000021Bolt, Shoulder
296500710Nut, Locking Center Flange .25-20
306900504Cable
317300012Pulley, Cable
325900019Bolt, Hex Washer Head .25-20 X .75
337009000Nut, Retainer .25-20 X .56
34492359Cover, Bottom

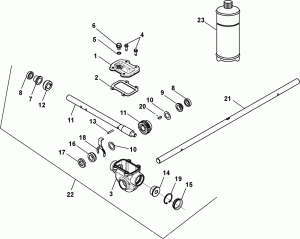

Gear Case


IDParts NumberParts DescriptionNotesPurchase
14280251Cover, Top
24282400Gasket
34276800Gearcase
45901510Bolt, Sems .25-20 X .50
56400920Washer, Seal
67400110Screw, Tapping Hex Washer Head Rolok .38-16 X .50
75501020Bushing, Flange
85600509Seal, Oil
95501106Bushing, Flange
106400912Washer, Flat Steel .760 X 1.225 X .032
1152003400Worm Shaft And Worm Gear Set
124277000Thrust Collar
135800207Pin, Straight .188 X 1.00 6150
145501108Bushing, Flange
154302800Cover, Front
165501107Bushing, Flange
175600508Seal, Oil
184323600Bushing Retainer
195700212Ring, Retaining, Internal 1.500 X .050
206609300Key, Woodruff .19 X .63 Hardened #61
213885800Shaft, Rake, 22In. (920013, 317) | (920013, 317)
263000Shaft, Rake - 24In. | (920014, 020, 316, 318)
2252004200Gear Case Assembly 22In. (Includes Items 1 – 21) (920013, 317) | (Includes Items 1 – 21) (920013, 317)
52004400Gear Case Assembly 24In. (Includes Items 1 – 21) (920014, 020, 316, 318) | (Includes Items 1 – 21) (920014, 020, 316, 318)
2368800L3 8Oz

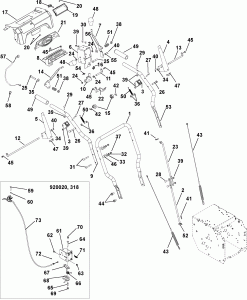

Handlebars and Controls


IDParts NumberParts DescriptionNotesPurchase
1597451Handlebar, Lower
24425767Rod, Shift, Lower
34310100Clutch Paddle Block
44310451Lever, Clutch-LH
54310551Lever, Clutch-RH
64316651Bracket Interlock
74317300Lever, Deflector | (920014, 020, 316, 318)
84317751Detent Plate
94318351Handlebar, Upper, Right Hand
104320400Interlock Arm
114320500Rod, Pivot
124321500Rod, Paddle Mount, Long
134321600Rod, Paddle Mount, Short
144846700Lever, Control - Shift (Weldment)
154322100Cam, Interlock
164322700Crank Bushing
1752004100Control Panel With Decal | (9200013, 317)
1752004300Control Panel With Decal | (920014, 316)
1752006800Control Panel With Decal | (920020, 318)
18432600Bult, Light-Halogen | (Included In Item 19)
194812300Asm, Headlamp - Halogen 20W - 2 Shot | (Includes Item 18)
207400107Screw, Tapping, Hex Head Boss #10 X .50
214305000Dash Bezel
224333151Anchor, Deflector Cable | (920014, 020, 316, 318)
234334967Rod, Shift, Upper
245500020Bushing, Polyliner
255963300Bolt, Hex .38-16 X 2.00 | (920013, 317)
255963300Bolt, Hex .38-16 X 2.00 | (920014, 020, 316, 318)
266200207Bolt, Round Head Extra Long Square Neck .31-18 X 2.00
276209300Bolt, Round Head Extra Long Square Neck .25-20 X 2.00
286219900Bolt, Round Head Square Neck .25-20 X .75
296220100Bolt, Round Head Extra Long Square Neck .25-20 X 1.25 | (920013, 014, 316, 317)
296220100Bolt, Round Head Extra Long Square Neck .25-20 X 1.25 | (920020, 318)
306220600Bolt, Round Head Square Neck .25-20 X .50
316221600Bolt, Round Head Square Neck .31-18 X 2.25
326307400Washer, Lock .312 X .097
336435700Washer, Flat Steel .38 X .875 X .083
346437300Washer, Flat Steel .281 X .62 X .065
356444000Washer, Flat Steel .406 X 1.00 X .188
366529800Nut, Locking Center .31-18
376530200Nut, Locking Nylon .31-18
386542000Nut, Locking Top Flange .38-16 | (920013, 317)
386542000Nut, Locking Top Flange .38-16 | (920014, 020, 316, 318)
396500710Nut, Locking Center Flange .25-20 | (920013, 014, 316, 317)
396500710Nut, Locking Center Flange .25-20 | (920020, 318)
406701900Pin, Hair, Internal .06 X .18 X .77 | (920013, 317)
406701900Pon, Hair, Internal .06 X .18 X .77 | (920014, 020, 316, 318)
416713500Pin, Hair, Internal .08 X. 18 X 1.18
426714500Pin, Spring Clip
436900438Cable, Control
447028500Bolt, Serrated Hex Flange Washer Head .38-16 X .75
457400034Screw, Tapping Hex Washer Head Thread Rolling .25-20 X .50 | (920013, 317)
457400034Screw, Tapping Hex Washer Head Thread Rolling .25-20 X .50 | (920014, 020, 316, 318)
467500005Spacer, Handlebar
477500103Edging, Clutch Paddle - 2.00In.
487500209Knob | (920013, 317)
487500209Knob | (920014, 020, 316, 318)
497500239Handle Grip
508300527Spring
518335700Spring | (920013, 317)
518335700Spring | (920014, 020, 316, 318)
52386700Pivot, Shift Rod .375-16
534318451Handlebar, Upper, Left Hand
548337000Spring
555501012Bushing, Sleeve | (920014, 020, 316, 318)
566439300Washer, Flat Steel .380 X 1.50 X .062 | (920014, 020, 316, 318)
574337300Wire Harness, Light
587517300Cable Tie
596100007Screw, Oval Head .25-20X1.50 | (920020, 318)
606305200Washer-Locking-Internal .250 Th | (920020, 318)
613293951Bracket, Height Adjuster | (920020, 318)
626219900Bolt-Round Head Square Neck .25-20X.75 Grade 5 | (920020, 318)
636500710Nut-Locking-Center-Flange .25-20 | (920020, 318)
645958500Bolt-Hex .38-16X1.75 Grade 5 | (920020, 318)
655500106Bushing-Sleeve | (920020, 318)
668300015Spring-Torsion | (920020, 318)
673376200Arm, Overtravel | (920020, 318)
683294000Lock, Height Adjuster | (920020, 318)
696534800Nut-Locking-Center-Flange .38-16 | (920020, 318)
707400034Screw-Tapping Hex Washer Head Thread Rolling .25-20X.50 | (920020, 318)
718300103Spring | (920020, 318)
726701900Pin-Hair-Internal .06X.18X.77 | (920020, 318)
736900510Cable, Track Remote | (920020, 318)

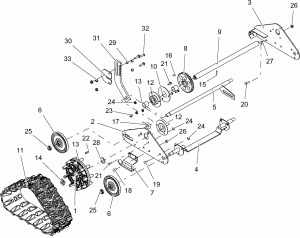

Track


IDParts NumberParts DescriptionNotesPurchase
14520000Wheel, Drive Track
24548651Side, Plate Rh
34548751Side, Plate Lh
44549500Axle, Frt
53293700Axle, Rear
63293600Wheel, Bogie
74549651Runner, Guide
8371000Gear, Spur
93291500Axle
104796351Plate, Bearing Spacer (Black)
114548500Track
125400723BRG, Flange 1.003/1.000 3 Bolt
135500122BSHG, Slv
145700001Clip, Snap
155800300Pin-Roll .188X1.25
166601200Key, Wdrf .25X.750X.313 Sae91
177000040Blt, Eye .375-16X.880 YWZC
186215700Blt-Rdhdsqnk .31-18X.75 G5 YWZC
196219900Blt-Rdhdsqnk .25-20X.75 G5 YWZC
205946900Blt-Hex .31-18X1.00 Gr5 YWZC
215946800Blt-Hex .25-20X.75 Gr5 YWZC
226600002Key-Rect .25X.188X1.00
236534800Nut, Lk-Ctr-Flg .38-16 YWZC
246500710Nut, Lk-Ctr-Flg .25-20 YWZC
256530300@Nut-Lk-Nyl .625-18 Ywzc
266543100Nut, Lk-Top-Flg .312-18 Ywzc
275501127Bshg, Flg
286436300Wshr-Fl-Stl 1.010X1.505X.062 Ywzc
291103100Spcr
303294151Plate, Height Adjuster
314548851Stop, Height Adjuster
326200008Blt-Rdhdsqshnk .31-18X1.25 G5Ywzc
336543100Nut, Lk-Top-Flg .312-18 Ywzc
