Ariens_ST624 Blowers

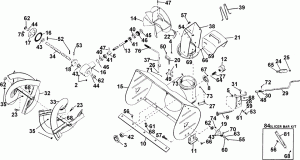

SNO-THRO 24″ Blower

ID	Parts Number	Parts Description
1	100800	Clutch Fork
2	113800	Pipe Plug
3	301700	Bearing Flange
4	303400	Roller
5	325400	Wave Washer .531X.781X.125 Fh
6	1010700	Bearing Spacer
7	1010800	Gasket
8	1014200	Bearing Flange
9	1015400	Control Sprocket
10	1016459	Scraper Blade 24In.
11	2483859	Skid Shoe
12	1017600	Jaw Clutch
13	51001400	Shaft & Gear Service Assembly
14	1017800	Fan
15	1017800	Blower Housing 24In.
16	1018000	Gear Case
17	1018100	Gear Case Flange
18	51001400	Shaft & Gear Service Assembly
19	1018400	Bearing Support
20	1018600	Fork Shaft
21	52406100	Chute Deflector W/Decal(82,93,311)
22	1019300	Wing Nut
23	51001500	Shear Bolt Service Assembly
24	7503900	Grip
25	1019800	Cap
26	1026000	Wave Washer
27	51002600	Chute Clamp Package
28	1028100	Chute Control Support
29	1028400	Chute Control Crank
30	2470400	Universal Joint
31	1029600	J-Bolt
32	1029700	R. H. Rake
33	1029800	L. H. Rake
34	1029900	Front Gear Shaft
35	1035400	Zerk Fitting
36	1037100	Adjustment Plug
37	1039000	Fork Cam
38	1039200	Discharge Chute
39	1039300	Safety Wire
40	5404400	Bearing Cup
41	5404500	Bearing Cone
42	5406300	Ball Bearing
43	5503500	Bushing
44	5606100	Seal
45	5606200	Seal
46	5707500	RG-RTNG-Int 1.781 X .062
47	5800700	RG-RTNG-Int 1.781 X .062
48	5800900	Roll Pin 1/8 X 1
49	2470401	Pin- Roll .188 Dia X 1.00 Long
50	5801700	Roll Pin 5/16 X 1-1/4
51	5802200	Roll Pin 5/16 X 1-3/8
52	5803000	Roll Pin 3/16 X 1-1/2
53	5947000	Bolt, 5/16-18 X .750 Hex 5 Y
54	5959400	Bolt, Hex .38-16 X .75
55	5947100	Bolt, Hex .50-13 X 1
56	6222000	Bolt, Round Head Square Neck .31-18 X .50 Grade 5
57	6200004	Bolt, Round Head Square Short Neck .38-16 X .75
58	6307400	Washer, Lock .312 X .097
59	6306500	Washer, Lock .375 X .115 Heavy
60	6306600	Washer-Locking .500 X .125
61	6435700	Washer, Flat Steel .380 X .875 X .83
62	6436300	Washer, Flat Steel 1.01 X 1.505 X .062
63	6436400	Washer, Flat, Steel .511 X 1.441 X .125
64	6441500	Washer, Flat-Steel .755 X 1.375 X .062
65	6436500	Washer-Flat-Steel .382 X .812 X .023
66	6529600	Nut, Locking Center .38-16
67	6529700	Nut, Locking Center .25-20
68	6529800	Nut, Locking Center .31-18
69	6536600	Nut, Hex 10-24
70	6530100	Nut, Locking Serrated Flange .25-20
71	6707100	Pin-Cotter .12 X 1.0
72	6712600	Cotter Pin 1/8 X 1-1/4
73	7001000	Flange Whizlock Screw 3/8-16 X 1/2
74	7028600	Bolt-Serrated-Neck-Slotted .25-20 X .50
75	7049400	Bolt-Serrated Hex Flange Washer Head .25-20 X .75
76	7500400	Grip 1/2 Id
77	8300010	Spring, Compression .105 X 1.35 X 2.00
78	7801200	Sno-Thro Label
79	52416300	Decals- Replacement - Danger
80	7805500	Clutch Instruction Decal
81	1024251	Cutter Bar - Black
82	6222000	Bolt, Round Head Square Neck .31-18 X .50 Grade 5
83	6529800	Nut, Locking Center .31-18
84	1099700	Slicer Bar Kit(Inc. 81,82,83) \| (Inc. 81,82,83)

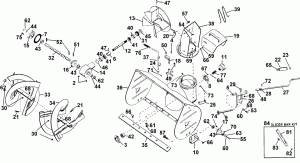

SNO-THRO 32″ Blower

ID	Parts Number	Parts Description
1	100800	Clutch Fork
2	113800	Pipe Plug
3	301700	Bearing Flange
4	303400	Roller
5	325400	Wave Washer .531X.781X.125 Fh
6	1010700	Bearing Spacer
7	1010800	Gasket
8	1014200	Bearing Flange
9	1015400	Control Sprocket
10	2483859	Skid Shoe
11	1017600	Jaw Clutch
12	51001400	Shaft & Gear Service Assembly
13	1017800	Fan
14	1018000	Gear Case
15	1018100	Gear Case Flange
16	51001400	Shaft & Gear Service Assembly
17	1018400	Bearing Support
18	1018600	Fork Shaft
19	52406100	Chute Deflector W/Decal(82,93,311)
20	1019300	Wing Nut
21	51001500	Shear Bolt Service Assembly
22	7503900	Grip
23	1019800	Cap
24	1026000	Wave Washer
25	51002600	Chute Clamp Package
26	1028100	Chute Control Support
27	1028400	Chute Control Crank
28	2470400	Universal Joint
29	1029600	J-Bolt
30	1035400	Zerk Fitting
31	1037100	Adjustment Plug
32	1038400	Front Gear Shaft
33	52412300	Rake, Right Hand - 32In. (16In. O.D.)
34	52412200	Rake, Left Hand - 32In. (16In. O.D.)
35	1038700	Scraper Blade
36	51001100	Blower Housing 32In.
37	1039000	Fork Cam
38	1039200	Discharge Chute
39	1039300	Safety Wire
40	5404400	Bearing Cup
41	5404500	Bearing Cone
42	5406300	Ball Bearing
43	5503500	Bushing
44	5606100	Seal
45	5606200	Seal
46	5707500	Rg-Rtng-Int 1.781 X .062
47	5800700	Roll Pin 1/4 X 1-1/4
48	5800900	Roll Pin 1/8 X 1
49	2470401	Pin- Roll .188 Dia X 1.00 Long
50	5801700	Roll Pin 5/16 X 1-1/4
51	5802200	Roll Pin 5/16 X 1-3/8
52	5803000	Roll Pin 3/16 X 1-1/2
53	5947000	Bolt, 5/16-18 X .750 Hex 5 Y
54	5959400	Bolt, Hex .38-16 X .75
55	5947100	Bolt, Hex .50-13 X 1
56	6222000	Bolt, Round Head Square Neck .31-18 X .50 Grade 5
57	6200004	Bolt, Round Head Square Short Neck .38-16 X .75
58	6307400	Washer, Lock .312 X .097
59	6306500	Washer, Lock .375 X .115 Heavy
60	6306600	Washer-Locking .500 X .125
61	6435700	Washer, Flat Steel .380 X .875 X .83
62	6436300	Washer, Flat Steel 1.01 X 1.505 X .062
63	6436400	Washer, Flat, Steel .511 X 1.441 X .125
64	6441500	Washer, Flat-Steel .755 X 1.375 X .062
65	6436500	Washer-Flat-Steel .382 X .812 X .023
66	6529600	Nut, Locking Center .38-16
67	6529700	Nut, Locking Center .25-20
68	6529800	Nut, Locking Center .31-18
69	6536600	Nut, Hex 10-24
70	6530100	Nut, Locking Serrated Flange .25-20
71	6707100	Pin-Cotter .12 X 1.0
72	6712600	Cotter Pin 1/8 X 1-1/4
73	7001000	Flange Whizlock Screw 3/8-16 X 1/2
74	7028600	Bolt-Serrated-Neck-Slotted .25-20 X .50
75	7049400	Bolt-Serrated Hex Flange Washer Head .25-20 X .75
76	7500400	Grip 1/2 Id
77	8300010	Spring, Compression .105 X 1.35 X 2.00
78	7801200	Sno-Thro Label
79	52416300	Decals- Replacement - Danger
80	7805500	Clutch Instruction Decal
81	1024251	Cutter Bar - Black
82	6222000	Bolt, Round Head Square Neck .31-18 X .50 Grade 5
83	6529800	Nut, Locking Center .31-18
84	1099700	Slicer Bar Kit(Inc. 81,82,82) \| (Inc. 81,82,82)

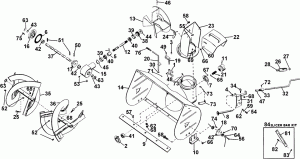

SNO-THRO Parts

ID	Parts Number	Parts Description
1	100800	Clutch Fork
2	301700	Bearing Flange
3	303400	Roller
4	325400	Wave Washer .531X.781X.125 Fh
5	1010700	Bearing Spacer
6	1010800	Gasket
7	1014200	Bearing Flange
8	1015400	Control Sprocket
9	1016459	Scraper Blade 24In.
10	2483859	Skid Shoe
11	1017600	Jaw Clutch
12	51001400	Shaft & Gear Service Assembly
13	1017800	Fan
14	51001000	Blower Housing 24In.
15	1018000	Gear Case
16	1018100	Gear Case Flange
17	51001400	Shaft & Gear Service Assembly
18	1018400	Bearing Support
19	1018600	Fork Shaft
20	1039000	Fork Cam
21	8300010	Spring, Compression .105 X 1.35 X 2.00
22	52406100	Chute Deflector W/Decal(82,93,311)
23	1039200	Discharge Chute
24	1019300	Wing Nut
25	51001500	Shear Bolt Service Assembly
26	7503900	Grip
27	1019800	Cap
28	1019900	Fastener
29	1026000	Wave Washer
30	51002600	Chute Clamp Package
31	1028100	Chute Control Support
32	1028400	Chute Control Crank
33	2470400	Universal Joint
34	1029600	J-Bolt
35	1029700	R. H. Rake
36	1029800	L. H. Rake
37	1029900	Front Gear Shaft
38	1037100	Adjustment Plug
39	5404400	Bearing Cup
40	5404500	Bearing Cone
41	5406300	Ball Bearing
42	5503500	Bushing
43	5606100	Seal
44	5606200	Seal
45	5707500	Rg-Rtng-Int 1.781 X .062
46	5800700	Roll Pin 1/4 X 1-1/4
47	5800900	Roll Pin 1/8 X 1
48	5800700	Roll Pin 3/16 X 1
49	5800700	Roll Pin 5/16 X 1-1/4
50	5802200	Roll Pin 5/16 X 1-3/8
51	5800300	Roll Pin 3/16 X 1-1/2
52	1035400	Zerk Fitting
53	422600	Pipe Plug
54	5952200	Blt-Hex .31-18 X .625 Gr5 YWZC
55	5952200	Blt-Hex .31-18 X .625 Gr5 YWZC
56	5952200	Blt-Hex .31-18 X .625 Gr5 YWZC
57	6222000	Bolt, Round Head Square Neck .31-18 X .50 Grade 5
58	6200004	Bolt, Round Head Square Short Neck .38-16 X .75
59	6307400	Washer, Lock .312 X .097
60	6306500	Washer, Lock .375 X .115 Heavy
61	6306600	Washer-Locking .500 X .125
62	6435700	Washer, Flat Steel .380 X .875 X .83
63	5404600	Washer 1.505 Od X 1.005 Id X 1/16
64	5404700	Washer 1.441 Od X .511 Id X 1/8
65	5404800	Washer 1.375 Od X .755 Id X 1/16
66	6529600	Nut, Locking Center .38-16
67	6529700	Nut, Locking Center .25-20
68	6529800	Nut, Locking Center .31-18
69	6536600	Nut, Hex 10-24
70	6530100	Nut, Locking Serrated Flange .25-20
71	6707100	Pin-Cotter .12 X 1.0
72	6706900	Pin, Cotter External .09 X .75
73	7001000	Flange Whizlock Screw 3/8-16 X 1/2
74	7028600	Bolt-Serrated-Neck-Slotted .25-20 X .50
75	7049400	Bolt-Serrated Hex Flange Washer Head .25-20 X .75
76	7500400	Grip 1/2 Id
77	7729600	Decal-Mower Pan Head
78	7729600	Decal-Mower Pan Head
79	7800300	Attachment Label
80	7800300	In-Out Label
81	1024251	Cutter Bar - Black
82	6222000	Bolt, Round Head Square Neck .31-18 X .50 Grade 5
83	6529800	Nut, Locking Center .31-18
84	03-10M00	Slicer Bar Kit(Inc. 81,82,83) \| (Inc. 81,82,83)

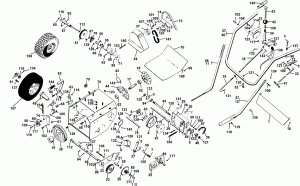

Tractor Parts

ID	Parts Number	Parts Description
1	50203400	Panel- Handlebar W/Decal-Ft524
2	203851	Clutch Handle
3	204500	Clutch Lock Pin
4	4743700	Disc- Friction
5	2414100	Bearing Flange
6	308500	Bearing Flange
7	4110300	Ball Joint
8	607100	Spacer, Bushing .5 X .32 X .21
9	3105100	Pin, Clevis
10	1014700	Bottom Cover
11	1015600	R. H. Lower Handle Bar \| (Used Only On Model(S): 10965).
12	1015700	L. H. Lower Handle Bar \| (Used Only On Model(S): 10965).
13	1015900	Inner Belt Guard
14	1016000	R.H. Belt Finger
15	1016100	L.H. Belt Finger
16	1019600	Handle Bar Washer
17	1020400	Spindle
18	1054600	Drive Plate
19	1020600	Jaw Coupling
20	52400200	Pinion And Sprocket
21	1020800	Pinion Stub Shaft
22	1046200	Support Bracket
23	1021100	Spur Gear \| (Used Only On Model(S): 10965).
24	1021200	Bracket Pin
25	1021300	Sliding Fork
26	1021500	Lever Bracket
27	1047600	Transfer Lever
28	1022200	Disc Bracket
29	1022600	Neutral Catch
30	1022700	Throwout Lever
31	2424700	Lower Shift Rod
32	1023000	Clutch Rod
33	1023100	Shift Quadrant
34	1023200	Shift Handle
35	1023500	Shift Rod
36	1023700	Chain
37	1023800	Engine Sheave
38	1023900	Driven Sheave
39	1024000	Spacer
40	1035700	Upper Handle Bar \| (Used Only On Model(S): 10965,10969).
41	1024700	Ball Joint
42	1024800	Shift Ball
43	1025000	Cover
44	1026700	Bearing Housing
45	1027500	Hex Shaft
46	1027600	Sprocket
47	1218300	Friction Disc Hub
48	1027900	Axle Shaft \| (Used Only On Model(S): 10965).
49	1028300	Wheel Hub \| (Used Only On Model(S): 10965).
50	1028500	Connecting Link
51	1238200	Spindle Cup \| (Used Only On Model(S): 10965).
51	1238200	Spindle Cup \| (Used Only On Model(S): 10970,10962,10969,10954).
52	247500	Eyebolt, Rod Hanger
53	1029300	Shift Release Handle
54	51003300	Belt Guard Assembly
55	1035400	Zerk Fitting \| (Used Only On Model(S): 10970,10962,10969,10954).
56	1015600	R.H. Lower Handle Bar \| (Used Only On Model(S): 10970,10962,10969,10954).
57	1015700	L.H. Lower Handle Bar \| (Used Only On Model(S): 10970,10962,10969,10954).
58	1035700	Upper Handle Bar \| (Used Only On Model(S): 10970,10962,10969,10954).
59	1035800	Spacer Bushing
60	1036000	Bearing Spacer
61	1036100	Shoulder Spacer
62	1036200	Clutch Lever
63	1036300	Clutch Bracket
64	1036500	Carburetor Cover \| (Used Only On Model(S): 10965,10970,10969).
65	1036600	Pushnut \| (Used Only On Model(S): 10970,10962,10969,10954).
66	51003000	L.H. Axle Assembly \| (Used Only On Model(S): 10970,10962,10969,10954).
67	1037000	R.H. Axle Shaft \| (Used Only On Model(S): 10970,10962,10969,10954).
68	1037200	Lockout Hub \| (Used Only On Model(S): 10970,10962,10969,10954).
69	1037300	Carburetor Cover \| (Used Only On Model(S): 10962,10954).
70	1037400	Pin \| (Used Only On Model(S): 10970,10962,10969,10954).
71	1037500	Knob \| (Used Only On Model(S): 10970,10962,10969,10954).
72	1037600	Ratchet Plate
73	1038200	Cover
74	1038900	Idler Arm
75	1039100	Tractor Frame
76	1039400	Fork Shaft
77	1103100	Spacer
78	1202300	Bearing Support
79	1208600	Cap
80	1208600	Idler Kit
81	1299900	Differential Assembly \| (Used Only On Model(S): 10970,10962,10969,10954).
82	5406300	Ball Bearing
83	5408300	Bearing
84	5408000	Bearing, Ball .50 X 1.38 X .437
85	5500111	Bushing, Flange
86	5502900	Bushing \| (Used Only On Model(S): 10970,10962,10969,10954).
87	5503000	Bushing \| (Used Only On Model(S): 10970,10962,10969,10954).
88	5503900	Flange Bushing \| (Used Only On Model(S): 10965).
89	5504000	Bushing
90	5703700	Retaining Ring
91	5704300	Snap Ring
92	5800300	Roll Pin 3/16 X 1-1/4 \| (Used Only On Model(S): 10970,10962,10969,10954).
93	5800700	Roll Pin 1/4 X 1-1/4 \| (Used Only On Model(S): 10970,10962,10969,10954).
94	2470401	Pin- Roll .188 Dia X 1.00 Long \| (Used Only On Model(S): 10965).
95	5803200	Roll Pin 3/32 X 1 \| (Used Only On Model(S): 10970,10962,10969,10954).
96	5946900	Bolt, Hex .31-18 X 1.00 Grade 5
97	5947000	Bolt, 5/16-18 X .750 Hex 5 Y
98	5959400	Bolt, Hex .38-16 X .75
99	5947900	Bolt, Hex .25-20 X .50 Grade 5 (926513)
100	5952500	Bolt, Hex .25-20 X 1.50 Grade 5
101	5947300	Bolt, Hex .31-24 X .75
102	5947400	Bolt, Hex .25-20 X 1.25
103	5947500	Bolt, Hex .31-18 X 1.25 Grade 5
104	5907200	Capscrew - 1/4-20 Unc X 1-1/4 H.H., H.T.
105	5957400	Bolt, Hex .31-18 X 1.75 Grade 5
106	5960600	Bolt, Hex .31-18 X 2.75
107	6005500	Scr-Set, 31-18 X .38 Skhcupdl Rev
108	6308000	Washer, .250 Wide Heavy Flat Y
109	6307400	Washer, Lock .312 X .097
110	6306500	Washer, Lock .375 X .115 Heavy
111	6435700	Washer, Flat Steel .380 X .875 X .83
112	6403300	Washer .755 I.D. X 1.375 Od X .125 Plated \| (Used Only On Model(S): 10965).
113	6403600	Washer .880 I.D. X 1.380 Od X .062 \| (Used Only On Model(S): 10970,10962,10969,10954).
114	6403700	Washer 9/32 I.D. X 1-1/4 O.D. X 1/16 Plated
115	6403800	Shim Washer - .505 I.D. X .880 O.D. X 24 Ga.,Plated
116	6444800	Washer-Flat-Steel .755 X 2.000 X .125 \| (Used Only On Model(S): 10965).
116	6444800	Washer-Flat-Steel .755 X 2.000 X .125 \| (Used Only On Model(S): 10970,10962,10969,10954).
117	6436200	Washer, .406 X .813 X X .065 Flat Y
118	6529200	Nut, 3/8-16 Std Hex Gr5 Y
119	6529400	Nut, 3/8 Unf Hex Grade 5
120	6529500	Nut, Hex .312-24
121	6529700	Nut, Locking Center .25-20
122	6504100	Locknut - #10-24 Plated
123	6529800	Nut, Locking Center .31-18
124	6537000	Nut-Locking-Center .31-24
125	6530000	Nut-Locking-Center .50-20
126	6530100	Nut, Locking Serrated Flange .25-20
127	6601100	Key \| (Used Only On Model(S): 10965).
128	6601200	Key - Woodruff #91 \| (Used Only On Model(S): 10965).
129	6601300	Key - Sae 1035
130	6601500	Key - Woodruff #5
131	6706900	Pin, Cotter External .09 X .75
132	6707100	Pin-Cotter .12 X 1.0
133	6701000	Hair Pin Cotter
134	6712600	Cotter Pin 1/8 X 1-1/4 \| (Used Only On Model(S): 10965).
134	6712600	Cotter Pin 1/8 X 1-1/4 \| (Used Only On Model(S): 10970,10962,10969,10954).
135	6901200	Cable Clamp
136	6903200	Throttle Control
137	7416900	Screw, Tapping .50-20 X .62 Hex Head (118, 122, 332, 505, 506, 507, 508, 551)
138	7000900	Flange Whizlock Screw - 5/16-18 X 1/2 Plated
139	7028600	Bolt-Serrated-Neck-Slotted .25-20 X .50
140	7001300	Belt Cover Bolt
141	7204700	Belt
142	7400100	Self-Tapping Screw - #10-12 X 1/2 Pan Head
143	7415500	Scr-Tap 10-24X.25 Crslph Tr Yz
144	7500500	Grip
145	7500113	Handle Grip
146	7801000	Helicon Patent Label
147	7801100	Clutch Label
148	7801300	Carburetor Cover Decal
149	7801600	Sno Shift Label
150	7861100	Decal-5Hp \| (Used Only On Model(S): 10965).
151	7803500	Engine Decal - 6 H.P. \| (Used Only On Model(S): 10970,10969).
152	7863700	Decal-7 Hp \| (Used Only On Model(S): 10962,10954).
153	7864400	Decal, Differential Lock (926042, 324) \| (Used Only On Model(S): 10970,10962,10969,10954).
154	8300400	Spring
155	8300700	Spring \| (Used Only On Model(S): 10965).
155	8300700	Spring \| (Used Only On Model(S): 10970,10962,10969,10954).
156	8301500	Clutch Lock Spring
157	A1098500	Tire And Wheel Assembly
157	7104600	Tire(Carlisle) \| (Carlisle)
157	7104900	Tire(Goodyear) \| (Goodyear)
157	7105000	Tube
157	7103800	Rim
158	A1299100	Tire And Wheel Assembly
158	7102800	Tire-Turf Saver 13 X 5.00-6
158	7105000	Tube
158	7103800	Rim

arienssnowblowerguide

Ariens_ST624 Blowers

Ariens_ST624 Blowers

SNO-THRO 24″ Blower

SNO-THRO 32″ Blower

SNO-THRO Parts

Tractor Parts
