Ariens_Compact 22 CE Blowers

Ariens_Compact 22 CE Blowers

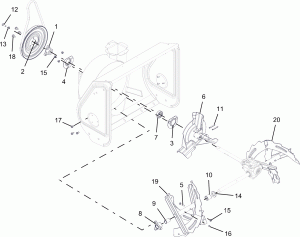

Auger And Impeller – 22 Inch

IDParts NumberParts DescriptionNotesPurchase
1268901Pulley, Spin Form Single Groove
2268951Pulley, Spin Form Single Groove
3428700Flange, Bearing
41014200Flange, Bearing
553200500Shear Bolt With Nut (Includes Item 17)
63835551Impeller, Compact 12In. 3-Blade
75406300BRG-Ball .750X1.750X.50
85500103BSHG, Rake Shaft .75In.
95500109BSHG, Flg Split Nyliner .75In. Id
105500917BSHG, Slv .75 X 1.12 X 1.062 X Nyl Bk
115803700Pin-Roll .250X1.75
125947300Blt-Hex .31-24X.75 Gr5 Ywzc
136307400WSHR-LK .31X.097 Hvy Ywzc
156529700Nut-LK-Ctr .25-20 YWZC
167061300Zerk, Fitting .25X.125 Drive In
177400034SCR-Tap .25-20X.50 HWH TR YWZ
187411500SCR-Tap .31-18X.50 HWH TR YWZ
1953212300Rake, RH 20In. - Service W/ Zerk
2053212400Rake, LH 20In. - Service W/ Zerk

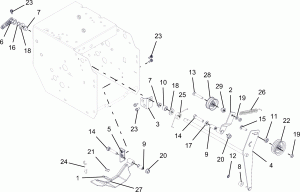

Brake And Idlers

IDParts NumberParts DescriptionNotesPurchase
1180500Pad, Brake
2493667Traction Idler Arm
3495051BRKT, Mount - Idler Arm
44892167WLDMT, Attachment Idler Arm
5495251BRKT, Brake Mount
61987100Arm, Clutch - Attachment
75500026Bushing, Polyliner - .50 Split
85500820Bushing, Sleeve
95500106BSHG, Slv .385 X .500 X 1.045
105500107BSHG, Slv .510 X .751 X .475
115501115BSHG, Flg .315X.500X.358X.281
125717600RG-RTNG-Ext .250 X .010
135957400Blt-Hex .31-18X1.75 Gr5 YWZC
145958500Blt-Hex .38-16X1.75 Gr5 YWZC
156200124Blt-Rdhdsqshnk .31-18X1.125 G5YWZC
166400005WSHR, Wave .50X.75X.015 .13Frht
176436200WSHR-Fl-Stl.406X.812X.065 YWZ
196500011Nut-Lk-Ctr-Jam .31-18 YWZC
206542000Nut, Lk-Top-Flg .38-16 YWZC
216800028Rvt-Pop .187X.250 (#64) YWZC | (#64) YWZC
227338900Idler, Flat - 2.00In.
237400034Scr-Tap .25-20X.50 Hwh Tr YWZ
248300104SPRG, Extension
258300326SPRG, Torsion
2752000500Arm, Brake W/Pad
287338500Idler, Flat - 1.875In.
295501114BSHG, Flg .315X.500X.481X.281


IDParts NumberParts DescriptionNotesPurchase

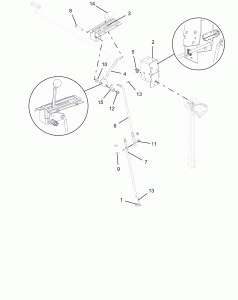

1386700Pivot, Shift Rod .375-16 | (Trunn)
24316651WLDMT, Brkt - Interlock
34317751WLDMT, Detent Plate-Compact
44846700Lever, Control - Shift (Weldment) | (Weldment)
54322700BSHG, Crank - Chute
64334967Rod, Shift Upper
74425767Rod, Shift - Lower | (Black)
85963300BLT-Hex .38-16X2.00 Gr5 Ywzc
96219900BLT-RDHDSQNK .25-20X.75 G5 YWZC
106444000Wshr-Fl-Stl .406X1.00X.188 YWZC
116500710Nut, Lk-Ctr-Flg .25-20 YWZC
126542000Nut, Lk-Top-Flg .38-16 YWZC
136713500Pin, Hair Int .08X.18X1.18 YWZC
147500209Knob, Soft Teardrop, Push-On Gry
158335700SPRG, Compression

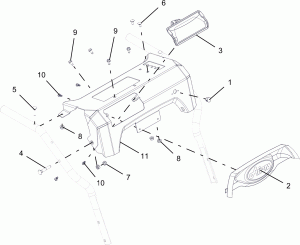

IDParts NumberParts DeSCRiptionNotesPurchase
11554900Hole Plug, Plastic .56 Hole
24305000Dash, Bezel Ariens Logo - Small
34812300Asm, Headlamp - Halogen 20W - 2 Shot
46200207BLT, Rdhd Xlsqnk .31-18X2.0 G5Yz
56220100BLT, Rdhdxlsqnk .25-20X1.25 G5Yz
66220600BLT-Rdhdsqnk .25-20X.50 G5 Y
76529800Nut-Lk-Ctr .31-18 Ywzc
86543500Nut, Lk-Top-Flg .25-20 Ywzc
97400034SCR-Tap .25-20X.50 Hwh Tr Ywz
107400107SCR-Tap #10X.500 Boss Indhxhd
1152004100Panel, Control - With Decal

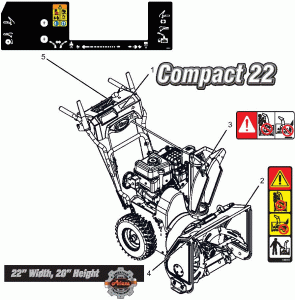

IDParts NumberParts DescriptionNotesPurchase
18000514Decal, Compact 22
28000519Decal, Danger -Rotating Parts
38000520Decal, Danger
4Decal, Housing - Compact 22
58000711Decal, Control - Compact Manual

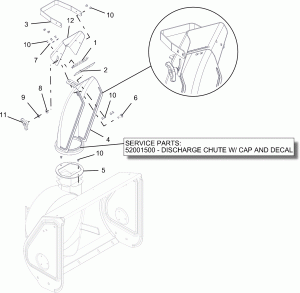

Discharge Chute

IDParts NumberParts DescriptionNotesPurchase
1170100Hinge, Cap
2628500Seal, Cap - 5.25
33212159Handle, Deflector
43881559Chute, Compact - Tall
452001500Discharge Chute W/ Cap And Decal | Service Part
53889400Baffle, Compact Discharge
66200007BLT-Rdhdsqshnk .31-18X1.00 G5YWZC
76400003WSHR-Fl-Stl .196X.500X.06 YWZC
86433600WSHR-Fl-Nyl .375X.75X.060
106800028RVT-Pop .187X.250 (#64) YWZC | (#64) YWZC
117500105Knob, Wing .31-18 Unc Nyl/Talc
12174359Cap, Small Deflector-Manual

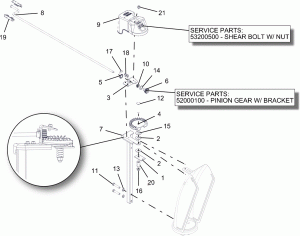

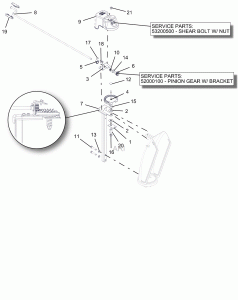

Discharge Chute Controls

IDParts NumberParts DescriptionNotesPurchase
1398000Plate, Friction
21123800Washer, Friction
31972451BRKT, Pinion Gear
43222900Gear, Chute
53224300Nut, Push - .625
63735300Gear, Pinion - Chute
652000100Pinion Gear W/ Bracket | Service Part
73883751Chute, Pedestal Tall Compact
84338000Rod, Chute Crank, Comp&Snotek
952006400Compac Cover W/Shear Bolts Kit
953200500Shear Bolt W/ Nut | Service Part
105500021Bshg, Polyliner - .63 Snap-In
115958500BLT-Hex .38-16X1.75 Gr5 YWZC
126224400BLT-Rdhdsqnk .38-16X2.50 G5 Y
136308800WSHR-Lk .38X.094 Reg YWZC
146400009WSHR-Thrst .625X1.00X.03
156400917WSHR-Fl-Stl .406X1.25X.10 YWZC
166542000Nut, Lk-Top-Flg .38-16 Ywzc
176714500Pin, Spring Clip
187400034SCR-Tap .25-20X.50 HWH Tr YWZ
197500203Knob, Chute Crank
208320900SPRG, Compression
217400104SCR, Tap .25-20X.50 Lghwh TR

Electrical And Wiring Diagram

IDParts NumberParts DescriptionNotesPurchase
14812300Headlight Assembly | (Includes Item 2)
2432600Bult, Light-Halogen | (Included In Item 1)
34337300Wire Harness, Light

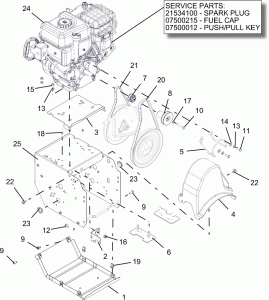

Frame And Engine

IDParts NumberParts DescriptionNotesPurchase
1492359Cover, Bottom
2657059Frame Brkt
33880851Baffle, Engine ,Small Block
43881000Cover, Compact Belt
54561800Finger, Belt
64334100Strap, Engine Bolt-Wldmt
74414000Sheave, Traction
84498800Sheave, Auger 3/4In. Pm
95900019BLT-Hex .25-20X.75 Hwh YWZC Gr5
105901401BLT-Hex .31-24X1.75 Gr5 YWZC
115947300BLT-Hex .31-24X.75 Gr5 YWZC
126212200BLT-Rhdssqnk .31-18X.62 G5Yz
136307400WSHR-Lk .31X.097 Hvy YWZC
156529200Nut-Hex .31-18 YWZC
166543100Nut, Lk-Top-Flg .312-18 YWZC
176307400WSHR-Lk .31X.097 Hvy YWZC
186800028Rvt-Pop .187X.250 (#64) YWZC | (#64) YWZC
197009000Nut, Rtnr .25-20 X .56
207200725V-Belt, Ha - Raw Edge Laminated
217200603V-Belt, 3L-Wrapped Clutching
227400108SCR, Tap .25-20 X.5 Captive
237500102Plug, Hole - 1.00In.
248200804Engine, Briggs - Snow 900 Recoil
2421534100Spark Plug | Service Part
247500215Fuel Cap | Service Part
247500012Push/Pull Key | Service Part
254393859WLDMT, Frame

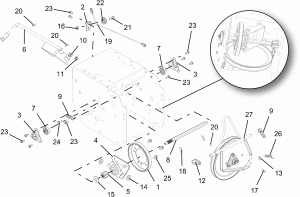

Friction Drive

IDParts NumberParts DescriptionNotesPurchase
14743700Disc- Friction
2373051BRKT, Cable Pulley
3383000Flange, BRG
4383100Carrier, Drive Disk
5493900Gear, 7T Pinion
6656951Shift Fork
75435200BRG-Ball .437X1.375X.437
84149500Shaft, Hex W/Spline
93374500BSHG, Support - Swing Gate
105500026Bushing, Polyliner - .50 Split
115500028BSHG, Polyliner - .50 Snap-In
125500113SPCR, Swing Gate
146439200WSHR-Fl-Stl .505X1.00X.062 YWZC
166500710Nut, Lk-Ctr-Flg .25-20 YWZC
176713500Pin, Hair Int .08X.18X1.18 YWZC
186714500Pin, Spring Clip
196900504Cable, Lower Traction | (Cmpct)
206944800Clip, Spring
217000021Bolt, Shldr -.375 X .375 X .25-20
227300012Pulley, Cable
237400034SCR-Tap .25-20X.50 Hwh Tr YWZ
247400111SCR-Tap .25-20X.75 Hwh Tr YWZ
257411500SCR-Tap .31-18X.50 Hwh Tr YWZ
268300036SPRG, Extension
2752105000Plate, Swing-Assembly

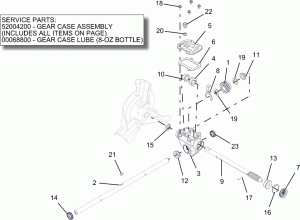

Gear Case – 22 Inch

IDParts NumberParts DescriptionNotesPurchase
1607000Worm, Gear | Only Available As Shaft And Gear Kit 52003400
23885800Shaft, Rake - 22In. | (.750 Dia )
34276800Gear, Case Compact Machined
44277000Thrust, Collar .75In. Id Slipfit
54280251Cover, Top Compact Iron
64282400GSKT, Top Compact Gearcase
74302800Cover, Gear Case 1.50In.
84323600BSHG, Retainer Compact
94332300Shaft, Worm | Only Available As Shaft And Gear Kit 52003400
105501020BSHG, Flg .755 X .878 X .75 X 1.25
115501106BSHG, Flanged .755X.878X.424X1.25
125501107BSHG, Flanged Compact, Right
135501108BSHG, Flanged .503X1.303X.62X1.465
145600508Seal, Oil .748 X 1.300 X .250
155600509Seal, Oil
165700212RG-RTNG-Int 1.500X.050
175800207Pin, Str .188 X 1.00 6150
185901510Bolt, Sems - .25-20X.50 Gr5 YWZC
196400912Wshr-Fl-Stl, .760 X 1.225 X .032 Yz
206400920Washer-Flat-Stl, Seal
216609300Key, Wdrf .19X.63 Hrd #61
227400110@, Scr -Rolok .38-16X.50 Hwh Ywzc
235600509Seal, Oil .748 X 1.125 X .312
2452004200Gear Case Assembly | (Includes All Items On Page)
2568800L3 8Oz | (8Oz Bottle)

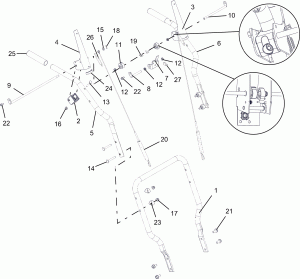

IDParts NumberParts DescriptionNotesPurchase
1597451Handlebar, Lower Compact
24310100Block, Clutch Handle
34310451Wldmt, Clutch Handle - LH
44310551Wldmt, Clutch Handle - RH
54318351Handlebar, Upper - RH
64318451Handlebar, Upper - LH
74320400BRKT, Interlock Arm
84320500Rod, Pivot - Interlock
94321500Rod, Paddle Mount - Long
104321600Rod, Paddle Mount - Short
114322100Cam, Interlock
125500020BSHG, Polyliner-.38 Snapin
136209300BLT, Rdhdxlsqnk .25-20X2.0 G5Yz
146221600BLT-Rdhdsqnk .31-18X2.25 G5 Y
156437300WSHR-Fl-Stl.281X.62X.065 YWZC
166543500Nut, Lk-Top-Flg .25-20 YWZC
176545400Nut-Lk-Nyl-Flg .31-18 YWZC
186701900Pin-Hair Int .06X.18X.77
196714500Pin, Spring Clip
206900438Cable, Auger & Upper Traction
217028500BLT-Serhfwh .38-16X.75 YWZC
227400034SCR-Tap .25-20X.50 Hwh Tr YWZ
237500005SPCR, Handlebar
247500103Strip, Edge - Clutch Handle
257500239Grip, Handle
268300527SPRG, Extension
278337000SPRG, Extension

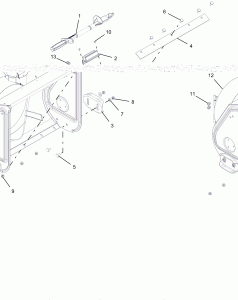

Housing – 22 inch

IDParts NumberParts DescriptionNotesPurchase
1170200Device, Snow Clean Out
2170300Mount, Snow Clean Out
32483859Shoe, Skid - Reversible
43884359Blade, SCR -22In. Compact
56200004BLT-Rhdssqnk .38-16X.75 G5Yz
66200209BLT, Rdhdsqshk Modified .31-18 X .62 Yz
76435700WSHR-Fl-Stl.38X.875X.083 YWZC
86529600Nut-Lk-Ctr .38-16 YWZC
96543100Nut, Lk-Top-Flg .312-18 YWZC
106800028Rvt-Pop .187X.250 (#64) YWZC | (#64) YWZC
117411500SCR-Tap .31-18X.50 Hwh Tr YWZ
1252002500Housing, Blower - 22In. With Decal
137001612Nut, Threaded Insert .38-16

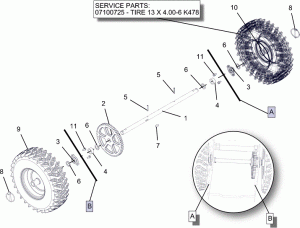

Wheels And Axle

IDParts NumberParts DescriptionNotesPurchase
1494200Shaft, Axle
2657800Spur, Gear 54T .75Id X 6.75Pd
35500101BSHG, .75 X 1.25 X .65
45500140BSHG, Slv .766X1.125X.500
55800300Pin-Roll .188X1.25
66441400WSHR-Fl-Stl .754X1.125X.062 YWZC
76601200Key, Wdrf .25X.750X.313 Sae91
87053700Pin, Lock .31X1.75
97100223Tire/Wheel, Rh 13 X 4.00-6 Pin
107100224Tire/Wheel, Lh 13 X 4.00-6 Pin
107100725Tire 13 X 4.00-6 K478 | Service Part
117400034SCR-Tap .25-20X.50 Hwh Tr YWZ
