Ariens_Deluxe 24 Blowers

Ariens_Deluxe 24 Blowers

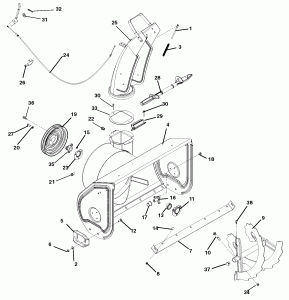

Auger And Chute


IDParts numberParts DescriptionNotesPurchase
1389000Rod, Deflector Cap (013, 016, 017, 018, 020, 306, 307, 311, 312) | (921013, 016, 017, 018, 020, 306, 307, 311, 312)
26435900Washer, Flat Steel .438 X 1.00 X .083
38300013Spring, Compression (013, 016, 017, 018, 020, 306, 307, 311, 312) | (921921013, 016, 017, 018, 020, 306, 307, 311, 312)
452101700Blower Housing With Decal 24In. (011, 014, 017, 019, 305, 311) | (921011, 014, 017, 019, 305, 311)
452101800Blower Housing With Decal 27In. (012, 015, 306, 312) | (921012, 015, 306, 312)
452101900Blower Housing With Decal 30In. (013, 016, 018, 020, 307) | (921013, 016, 018, 020, 307)
52483859Runner, Double Flange
66529600Nut, Locking Center .38-16
7658559Blade, Scraper - 24In. | (921011, 014, 017, 019, 305, 311)
7660659Blade, Scraper - 27In. | (921012, 015, 306, 312)
7661159Blade, Scraper- 30In. | (921013, 016, 018, 020, 307)
86543100Nut, Locking Top Flange .31-18 (011, 012, 014, 015, 017, 019, 305, 306, 311, 312) | (921011, 012, 014, 015, 017, 019, 305, 306, 311, 312)
86543100Nut, Locking Top Flange .31-18 (013, 016, 018, 020, 307) | (921013, 016, 018, 020, 307)
952102600Rake, Left Hand W/Zerk - 24In. (14In. O.D.) (011, 014, 017, 019, 305, 311) | (14In. O.D.) (921011, 014, 017, 019, 305, 311)
952102700Rake, Right Hand W/Zerk - 24In. (14In. O.D.) (011, 014, 017, 019, 305, 311) | (14In. O.D.) (921011, 014, 017, 019, 305, 311)
952102800Rake, Left Hand W/Zerk - 27In. (14In. O.D.) (012, 015, 306, 312) | (14In. O.D.) (921012, 015, 306, 312)
952102900Rake, Right Hand W/Zerk - 27In. (14In. O.D.) (012, 015, 306, 312) | (14In. O.D.) (921012, 015, 306, 312)
952103000Rake, Left Hand W/Zerk - 30In. (14In. O.D.) (013, 016, 018, 020, 307) | (14In. O.D.) (921013, 016, 018, 020, 307)
952103100Rake, Right Hand W/Zerk - 30In. (14In. O.D.) (013, 016, 018, 020, 307) | (14In. O.D.) (921013, 016, 018, 020, 307)
1052100100Shear Bolt Service Assembly (Includes Item 34) | (Includes Item 34)
11428700Flange, Bearing
126212000Bolt, Round Head Square Short Neck .38-16 X 1.00 Grade 5
135409300Bearing, Ball
146200209Bolt, Scraper Blade | (921011, 012, 014, 015, 017, 019, 305, 306, 311, 312)
146200209Bolt, Scraper Blade | (921013, 016, 018, 020, 307)
156529700Nut, Locking Center .25-20
16659200Support, Rake Bushing
175500114Bushing, Flange Nylon
187400034Screw, Tapping Hex Washer Head .25-20 X .50
19268751Pulley, Dual Groove
206307400Washer, Locking .312 X .097 Heavy
217400030Screw, Tapping Hex Washer Head .31-18 X .50
227001612Nut, Threaded Insert .38-16
231014200Bearing Flange
246900406Cable, Deflector (013, 016, 017, 018, 020, 306, 307, 311, 312) | (921013, 016, 017, 018, 020, 306, 307, 311, 312)
2552602200Chute, Discharge With Deflector (017, 018) | (921017, 018)
2552100500Chute, Discharge With Cap And Decal (011, 012, 014, 015, 019, 305) | (921011, 012, 014, 015, 019, 305)
2552609000Chute, Discharge With Deflector (013, 016, 306, 307, 311, 312) | (921013, 016, 306, 307, 311, 312)
2552103200Chute, Discharge With Cap And Decal (020) | (921020)
266909400Clamp, J (013, 016, 017, 018, 020, 306, 307, 311, 312) | (921013, 016, 017, 018, 020, 306, 307, 311, 312)
275947300Bolt, Hex .31-24 X .75 Grade 5
28170200Device, Snow Clean Out
29170300Mount, Snow Clean Out
306800028Rivet, Pop .187
316437300Washer, Flat Steel .281 X .62 X .065 (013, 016, 017, 018, 020, 306, 307, 311, 312) | (921013, 016, 017, 018, 020, 306, 307, 311, 312)
326701900Pin, Hair Internal .06 X .18 X .77 (013, 016, 017, 018, 020, 306, 307, 311, 312) | (921013, 016, 017, 018, 020, 306, 307, 311, 312)
33600100Baffle, Discharge Neck
346529800Nut, Locking Center .31-18
35268702Hub, Pulley D-Bore .87
367411500Screw, Tapping Hex Washer Head .31-18 X .50
374444000Plug, Rake Tube
387061300Zerk, Fitting .25 X .125 Drive-In

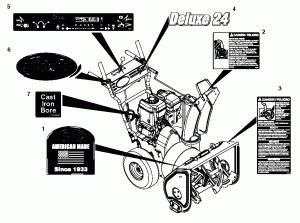

Decals


IDParts numberParts DescriptionNotesPurchase
18000407Decal, Ariens Since 1933
28000520Decal, Danger
38000519Decal, Danger – Rotating Parts
48000332Decal, Deluxe 24
58000127Decal, Control Panel (011, 019) | (011, 019)
58000208Decal, Control Panel (014) | (014)
68000327Decal, Ariens Jewel
77797600Decal, Cast Iron Bore

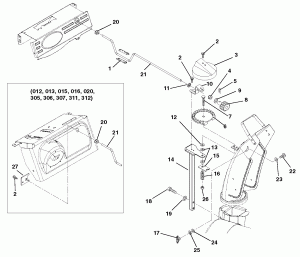

Discharge Chute


IDParts numberParts DescriptionNotesPurchase
17500020Knob, Crank Snap
27400034Screw, Tapping Hex Washer Head .25-20 X .50 (012, 013, 015, 016, 020, 305, 306, 307, 311, 312) | (012, 013, 015, 016, 020, 305, 306, 307, 311, 312)
27400034Screw, Tapping Hex Washer Head .25-20 X .50 (011, 014, 019) | (011, 014, 019)
33223000Cover, Gear
45500021Bushing, Polyliner
56714500Pin, Spring Clip
63222900Gear, Chute
76224400Bolt, Round Head Square Neck .38-16 X 2.50 Grade 5
852000100Bracket With Pinion Gear (Contains Items 4, 9, 10, 11) | (Contains Items 4, 9, 10, 11)
96400009Washer, Thrust .625 X 1.0 X .03
101972451Bracket, Pinion Gear
113224300Push Nut
126439300Washer, Flat Steel .38 X 1.50 X .062
131123800Friction Washer
14658351Pedestal, Chute - Crank
15398000Plate, Friction
168320900Spring, Compression
177500109Knob, Wing .38-16 (011, 012, 014, 015, 019, 305) | (011, 012, 014, 015, 019, 305)
185958500Bolt, Hex .38-16 X 1.75 Grade 5
196308800Washer, Locking .38 X .094
205500020Bushing, Polyliner
21956500Rod, Chute Crank
226212000Bolt, Round Head Square Short Neck .38-16 X 1.00 (011, 012, 014, 015, 019, 305) | (011, 012, 014, 015, 019, 305)
236441100Washer, Flat-Steel .52 X .827 X .062 (011, 012, 014, 015, 019, 305) | (011, 012, 014, 015, 019, 305)
246433600 Washer, Flat-Nylon .375 X .75 X .060 (011, 012, 014, 015, 019, 305) | (011, 012, 014, 015, 019, 305)
256436200Washer, Flat-Steel .406 X .812 X .065 (011, 012, 014, 015, 019, 305) | (011, 012, 014, 015, 019, 305)
266542000Nut, Locking-Top-Flange .38-16
273390151Bracket, Chute Crank (012, 013, 015, 016, 020, 305, 306, 307, 311, 312) | (012, 013, 015, 016, 020, 305, 306, 307, 311, 312)

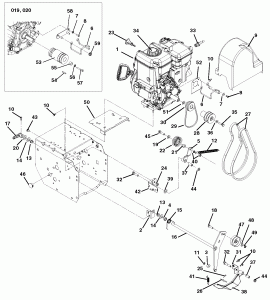

Engine And Belt Drive


IDParts numberParts DescriptionNotesPurchase
18200513Engine, Briggs And Stratton Snow 1150 Series, 120V (011 - Sn 000101 - 003000, 012 - Sn 000101 -003499
18200508Engine, Briggs And Stratton Snow 1150 Series, 120V (011 - Sn 003001 And Up, 012 - Sn 003500 And Up (014, 015, 017) | (011 - Sn 003001 And Up, 012 - Sn 003500 And Up (014, 015, 017)
18200509Engine, Briggs And Stratton Snow 1450 Series, 120V (013, 016) | (013, 016)
18200510Engine, Briggs And Stratton Snow 1650 Series, 120V (018) | (018)
18200515Engine, Subaru Sx21 Snow Recoil (019) | (019)
18200516Engine, Subaru Sx30 Snow 120V (020) | (020)
18200502Engine, Briggs And Stratton Snow 1150, 240V (305, 311) | (305, 311)
18200503Engine, Briggs And Stratton Snow 1450, 240V (306, 312) | (306, 312)
18200504Engine, Briggs And Stratton Snow 1650, 240V (307) | (307)
2495051BRKT, Mount - Idler Arm
35500820Bushing, Sleeve
45500107Bushing, Sleeve
5493600Traction Idler Arm
63882100Belt Finger
76307400Washer, Locking .312 X .097 Heavy
85947300Bolt, Hex .31-24 X .75 Grade 5
9659600Cover, Belt | (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)
94084000Cover, Belt | (020)
107400034Screw, Tapping Hex Washer Head .25-20 X .50
115717600Ring, Retaining External .250 X .010
128300538Spring, Extension
135500026Bushing, Polyliner .50 Split
146425300Washer, Flat Steel .531 X 1.00 X .063
158300326Spring, Torsion
162956700Weldment, Attachment Idler Arm
171987100Arm, Clutch - Attachment
186200111Bolt, Round Head Square Short Neck .38-16 X 1.75
196435700Washer, Flat Steel .38 X .875 X .083
206400005Washer, Wave .50 X .75 X .015, .13 Free Height
211213100Spacer, Bearing
2252007000Idler Kit
237500114Key, Push/Pull Briggs & Stratton (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312) | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
237500117Key, Push/Pull Subaru (019, 020) | (019, 020)
246543100Nut, Locking-Top-Flange .31-18
256800028Rivet, Pop .187 (Included With Item 38) | (Included With Item 38)
26180500Pad, Brake | (Included With Item 38)
277200514V-Belt, Ha Matched Set (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312) | (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)
277200536V-Belt, Ha Matched Set (020) | (020)
2852105700Sheave Kit- Deluxe | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
297200111V-Belt 3L (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312) | (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)
297200717V-Belt, 3L Section Raw Edge | (020)
30659400Sheave, Drive | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
31657551 BRKT, Brake Mount
325958500Bolt, Hex .38-16 X 1.75 Grade 5
3321547500 Plug, Spark (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312) | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
3321547200Plug, Spark (019, 020) | (019, 020)
347500013Gas Cap | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
347500116Cap, Fuel Subaru (019, 020) | (019, 020)
355901307Bolt, Hex .38-24 X 2.25 Grade 5 (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312) | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
366308800Washer, Locking .38 X .094 (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312) | (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)
375500106Bushing , Sleeve
3852000500Brake Arm W/Pad (Includes Items 25 And 26) | (Includes Items 25 And 26)
396436200Washer, Flat-Steel .406 X .812 X .065
406500011Nut, Locking-Center Jam .31-18
418300103Spring, Extension
42657059Frame Brkt
436212200Bolt, Round Head Square Short Neck .31-18 X .62
446542000Nut, Locking-Top-Flange .38-16
455952400Bolt, Hex .31-18 X 1.50 Grade 5
467500023Plug, Hole .875In. Nylon (011, 012, 013, 017, 018, 019, 020, 305, 306, 307) | (011, 012, 013, 017, 018, 019, 020, 305, 306, 307)
477333500Idler, Flat
486435700Washer, Flat-Steel .38 X .875 X .083
496537200Nut, Locking-Jam-Center .375-16
503880851Baffle (011, 012, 014, 015, 017, 019, 305, 311) | (011, 012, 014, 015, 017, 019, 305, 311)
513880751Baffle (013, 016, 018, 020, 306, 307, 312) | (013, 016, 018, 020, 306, 307, 312)
516443000Washer, Flat-Steel 1.062 X 2.0 X .134 (013, 016, 018, 020, 306, 307, 312) | (013, 016, 018, 020, 306, 307, 312)
523815251Baffle, Engine (013, 016, 018, 306, 307, 312) | (013, 016, 018, 306, 307, 312)
533972900Sheave, Engine (019) | (019)
533974300Sheave, Engine (020) | (020)
546609600Key, Square .186 X 1.50 (019) | (019)
546610300Key, Square .25 X 2.25 (020) | (020)
553973000Bushing, Sleeve (019) | (019)
555500938Bushing, Spacer (020) | (020)
566307400Washer, Locking .312 X .097 (019) | (019)
566309300Washer, Locking .44 X .109 (020) | (020)
575901416Bolt, Hex .31-24 X 2.50 Grade 5 (019) | (019)
583964600Plate, Belt Finger Mount (020) | (020)
575900039Bolt, Hex .44-20 X 1.50 Grade 5 (020) | (020)
596543100Nut, Locking Top Flange .31-18 (020) | (020)

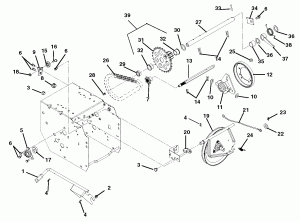

Friction Drive


IDParts numberParts DescriptionNotesPurchase
1494051Shift Fork
25500028Bushing, Polyliner-.50 Snap-In
35500026Bushing, Polyliner-.50 Split
46944800Clip, Spring
5383000Flange, Brg
67400034Screw, Tapping Hex Washer Head .25-20 X .50
7385800Sprocket, Pinion 7T W/ Splin
87500023Plug, Hole- .875In. Nylon (011, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312) | (921011, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)
9373051Brkt, Cable Pulley
106439200Washer, Flat Steel .505 X 1.00 X .062
11383100Carrier, Drive Disk
124743700Disc- Friction
13657600Hex Shaft W/Spline
146714500Pin, Spring Clip
157300012 Pulley, Cable
167000021Bolt, Shoulder .375 X .375 X .25-20
175435200Bearing, Ball
186543500Nut, Locking Top Flange .25-20
1952100200Plate, Swing Assembly
205500113Spacer, Swing Gate
216900313Cable, Traction - Tractor
226437200Washer, Flat-Steel .344 X .688 X .065
236713500Pin, Hair Internal .08 X .18 X 1.18
248300036Spring, Extension
257411500Screw, Tapping Hex Washer Head Thread Rolling .31-18 X .50
262466200Chain, #41, 32 Pitches
27657900Shaft, Pinion
287061300Zerk, Fitting .25 X .125 Drive-In
295500035Bushing, Sleeve
306436100Washer, Flat Steel .630 X 1.005 X .062
31190600Pinion, Sprocket
325500111Bushing, Flange
335800900Pin, Roll .125 X 1.00
34503500Tab, Anti - Rotation
355500029Spacer (011, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312) | (921011, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)
366436100Washer, Flat Steel .630 X 1.005 X .062 (012, 013, 020) | (921012, 013, 020)
37391200Lever, Lock Arm | (921012, 013, 020)
38391300Sprg, Torsion | (921012, 013, 020)
3952601500Pinion And Sprocket W/Bushings (Includes Items 31 And 32) | (Includes Items 31 And 32)

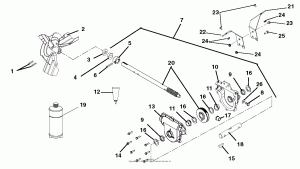

Gear Case Aluminum


IDParts numberParts DescriptionNotesPurchase
15803700Pin, Roll .25 X 1.75
2485551Impeller, Sno - 3 Blade 14In.
35600001Seal, Oil .875 X 1.375 X .250
45500008Bushing, Flange .876 X 1.50 X .750
5255100Thrust Collar, .875In. Id
65806800Pin, Groove .250 X 1.50
752101000Gear Case Assembly - Common | (Contains Items 3-6, 8-20)
87400110Screw, Tapping Hex Washer Head Rolok .38-16 X .50
95618800Seal 1.00 X 1.38
1052104900Large Lh Gear Case Casting
115520500Bushing, Flanged
1231700Locktite 518 Gasket--6Ml Tube
13254000Gearcase, Aluminum, R H
147412400Screw, Tapping .25-20 X 1.00
156608800Key, Woodruff .25 X .875 Hardened
166436300Washer, Flat-Steel 1.010 X 1.505 X .062
175500007Bushing-Flange
18485400Rake Shaft, Short-Common
1968800L3 8Oz | (9 Oz. Capacity)
2052100900Assembly, Worm Shaft And Gear
21485051Bracket, Gearcase Support Lh
22485151Bracket, Gearcase Support Rh
236200118Bolt, Round Head Square Short Neck .31-18 X .62
246543100Nut, Locking Top Flange .31-18
256216100Bolt, Round Head Square Neck .31-18 X 1.00 Grade 5
266442500Washer, Fiber

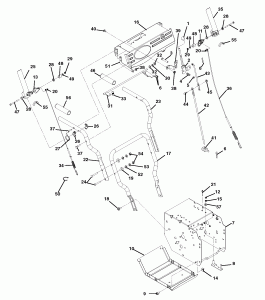

Handlebars And Controls


IDParts numberParts DescriptionNotesPurchase
17533500Knob, Ball-Black
23247900Weldment, Shift Lever
35963300Bolt, Hex .38-16 X 2.00 Grade 5
48335700Spring, Compression
56542000Nut, Locking-Top-Flange .38-16
66713500Pin, Hair Internal .08 X .18 X 1.18
73884259Weldment, Frame
8188400Strap, Engine Bolt
95900019Bolt, Hex Washer Head .25-20 X .75 Grade 5
10492359Cover, Bottom
113386500Left Hand Cam, Interlock
126529200Nut, Hex .31-18
133386600Right Hand Cam, Interlock
147009000Nut, Retainer .25-20 X .56
156307400Washer, Locking .31 X .097 Heavy
1652001400Control Panel With Decal (011, 019) | (921011, 019)
1652102500Control Panel With Decal (014) | (921014)
17656151Handlebar, Lower
187028500Bolt, Serrated Flange Hex Washer Head .38-16 X .75 Grade 5
197500005Spacer, Handlebar
205717600Ring, Retaining, External .25 X .010
216800028Rivet-Pop, .187
22656251Handlebar, Upper Rh | (921011, 019)
223785151Handlebar, Upper Rh (014) | (921014)
23656351Handlebar, Upper Lh
246221600Bolt, Round Head Square Neck .31-18 X 2.25
25398351Paddle, Clutch - R H
265500040Spacer, Handlebar
278300026Spring, Torsion
28399300Bshg, Flange
296530900Nut, Jam Nylon .250-20
305500020Bushing, Polyliner
313387000Weldment, Interlock Shaft
326436200Washer, Flat-Steel .406 X .812 X .065
338300432Spring, Extension
346900312Cable, Attachment
35398151Paddle, Clutch - L H
366900301Cable, Traction
376200009Bolt, Round Head Square Extra Long Neck .31-18 X 1.50 Grade 5
386543100Nut, Locking Top Flange .31-18
393886951Bracket, Shift Mount
406212200Bolt, Round Head Square Short Neck .31-18 X .62
41386700Pivot, Shift Rod .375-16
42494967Rod, Shift - Lower
43494867Rod- Shift - Upper
446219900Bolt, Round Head Square Neck .25-20 X .75 Grade 5
456543500Nut, Locking Top Flange .25-20
467500239Handle Grip
475965300Bolt, Hex .25-20 X 3.25
48589800BSHG, Slv .266 X .750 X .750
496437300Washer, Flat Steel .281 X .62 X.065
507517300Cable Tie
513387151Strap, Support
526435700Washer, Flat Steel .38 X .875 X .083
536307400Washer, Locking .312 X .097 Heavy
546530200Nut, Locking Nylon .31-18
557500103Edging, Clutch Paddle
567500113Handle Grip (014) | (921014)
567500239Handle Grip | (921011, 019)
576437200Washer, Flat Steel .344 X .688 X .065 (011, 014) | (921011, 014)
576437200Washer, Flat Steel .344 X .688 X .065 (019) | (921019)

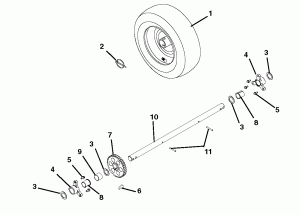

Wheels And Axles


IDParts numberParts DescriptionNotesPurchase
17100225Tire/Wheel, Right Hand 15 X 5.00-6 Pin
17100226Tire/Wheel, Left Hand 15 X 5.00-6 Pin
17100726Tire, 15 X 5.00-6 K478
27015800Pin-Lok .31 X 2.00
36436300Washer, Flat-Steel 1.010 X 1.505 X .062
4275100BSHG, Rake Shaft
57400034Screw, Tapping Hex Washer Head .25-20 X .50
66601200Key, Woodruff .25 X .750 X .313 Sae 91
7371000Gear, SPUR
85500030Bushing, Flange Split Nyliner 1.0In. Hp
95500122Bushing, Sleeve
10658100Axle, Solid
115800300Pin, Roll .188 X 1.25
