Ariens_STT2L Compact 22 CE Blower

Ariens_STT2L Compact 22 CE Blower

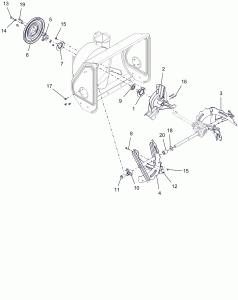

Auger And Impeller – 22″

IDParts NumberParts DeSCRiptionNotesPurchase
1428700Flange, Bearing
23835551Impeller, Compact 12In. 3-Blade
353212400Rake, Lh 20In. - Service W/ Zerk
453212300Rake, Rh 20In. - Service W/ Zerk
5268901Hub, Attachment Pulley
6268951Pulley, Spin Form Single Groove
71014200Flange, Bearing
853200500Asm, Shear Bolt W/Nut (3 Pack)
95406300BRG-Ball .750X1.750X.50
105500103BSHG, Rake Shaft .75In.
115500109BSHG, Flg Split Nyliner .75In. Id
127061300Zerk, Fitting .25X.125 Drive In
135947300BLT-Hex .31-24X.75 Gr5 YWZC
146307400WSHR-Lk .31X.097 Hvy YWZC
156529700Nut-Lk-Ctr .25-20 YWZC
165803700Pin-Roll .250X1.75
177400034SCR-Tap .25-20X.50 Hwh Tr YWZ
197411500SCR-Tap .31-18X.50 Hwh Tr YWZ
205500917BSHG, Slv .75 X 1.12 X 1.062 X Nyl Bk

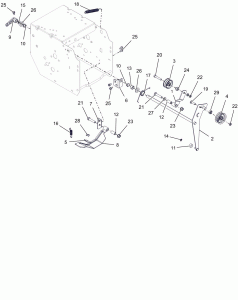

Brake And Idlers

IDParts NumberParts DescriptionNotesPurchase
1493667Wldmt, Traction Idler Arm
24892167Wldmt, Attachment Idler Arm
37338500Idler, Flat - 1.875In.
47338900Idler, Flat - 2.00In.
5180500Pad, Brake
6495051BRKT, Mount - Idler Arm
7495251BRKT, Brake Mount
852000500Arm, Brake W/Pad
91987100Arm, Clutch - Attachment
105500026Bushing, Polyliner - .50 Split
115500820Bushing, Sleeve
125500106BSHG, Slv .385 X .500 X 1.045
135500107BSHG, Slv .510 X .751 X .475
145717600RG-RTNG-Ext .250 X .010
156400005WSHR, Wave .50X.75X.015 .13Frht
168300104SPRG, Extension
178300326SPRG, Torsion
196200124BLT-Rdhdsqshnk .31-18X1.125 G5YWZC
205957400BLT-Hex .31-18X1.75 Gr5 YWZC
215958500BLT-Hex .38-16X1.75 Gr5 YWZC
226500011Nut-Lk-Ctr-Jam .31-18 YWZC
236542000Nut, Lk-Top-Flg .38-16 YWZC
245501114BSHG, Flg .315X.500X.481X.281
257400034SCR-Tap .25-20X.50 Hwh Tr Ywz
276436200WSHR-Fl-Stl.406X.812X.065 Ywz
286800028Rvt-Pop .187X.250 (#64) YWZC
295501115BSHG, Flg .315X.500X.358X.281

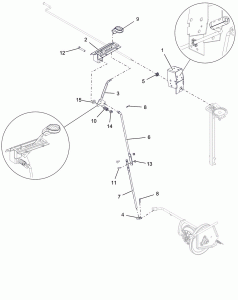

Controls – 22″ CE

IDParts NumberParts DescriptionNotesPurchase
14316651WLDMT, BRKT - Interlock
24317751WLDMT, Detent Plate-Compact
34846700Lever, Control - Shift (Weldment)
4386700Pivot, Shift Rod .375-16 (Trunn)
54322700BSHG, Crank - Chute
64334967Rod, Shift Upper
74753767Rod, Shift - Lower (Black)
86713500Pin, Hair Int .08X.18X1.18 YWZC
94816300Knob, Control - Soft Touch
108335700SPRG, Compression
116219900BLT-Rdhdsqnk .25-20X.75 G5 YWZC
125963300BLT-Hex .38-16X2.00 Gr5 YWZC
136500710Nut, Lk-Ctr-Flg .25-20 YWZC
146542000Nut, Lk-Top-Flg .38-16 YWZC
156444000WSHR-Fl-Stl .406X1.00X.188 YWZC

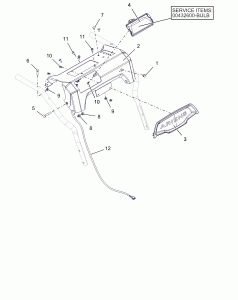

Dash – 22″ CE

IDParts NumberParts DescriptionNotesPurchase
11554900Hole Plug, Plastic .56 Hole
252007400Panel, Control - With Decal
34982300Bezel, Dash - Ariens Sm
44812300Asm, Headlamp - Halogen 20W - 2 Shot
4432600Bulb | Service Part
56200207BLT, Rdhd Xlsqnk .31-18X2.0 G5Yz
66220100BLT, Rdhdxlsqnk .25-20X1.25 G5Yz
76220600BLT-Rdhdsqnk .25-20X.50 G5 Y
86529800Nut-Lk-Ctr .31-18 Ywzc
96543500Nut, Lk-Top-Flg .25-20 YWZC
107400107SCR-Tap #10X.500 Boss Indhxhd
117400034SCR-Tap .25-20X.50 Hwh Tr YWZ
124337300Harness, Light - Compact

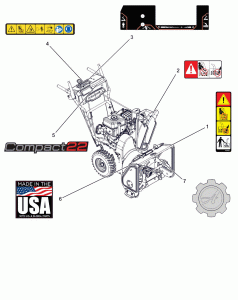

Decals – 22″ CE

IDParts NumberParts DescriptionNotesPurchase
18000519Decal, Danger -Rotating Parts
28000520Decal, Danger
38000951Decal, Control - Comp
48000945Decal, Safety Dash
58001109Decal, Dash - Compact 22
68001038Decal, Made In Usa
78001034Decal, Ariens - Gear Badge

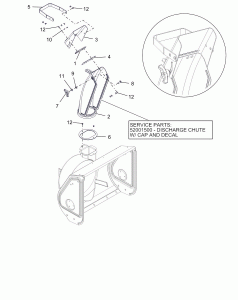

Discharge Chute – 22″ CE

IDParts NumberParts DescriptionNotesPurchase
1170100Asm, Hinge
23881559Chute, Compact - Tall
252001500Discharge Chute W/ Cap And Decal | Service Part
352008300Cap, Manual - Compact (W/Decal)
4628500Seal, Cap - 5.25
53212159Handle, Deflector
63889400Baffle, Compact Discharge
77500105Knob, Wing .31-18 UNC NYL/TALC
86200007BLT-RDHDSQSHNK .31-18X1.00 G5YWZC
96433600WSHR-FL-NYL .375X.75X.060
106400003WSHR-FL-STL .196X.500X.06 YWZC
126800028RVT-POP .187x.250 (#64) YWZC

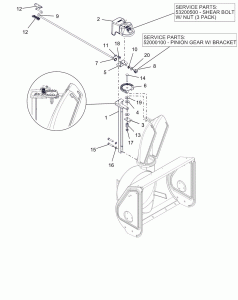

Discharge Chute Controls – 22″ CE

IDParts NumberParts DescriptionNotesPurchase
13883751Chute, Pedestal Tall Compact
252006400Compac Cover W/Shear Bolts Kit
253200500Shear Bolt W/ Nut (3 Pack) | Service Part
3398000Plate, Friction
41123800Washer, Friction
51972451BRKT, Pinion Gear
63222900Gear, Chute
73224300Nut, Push - .625
83735300Gear, Pinion - Chute
94338000Rod, Chute Crank, Comp&Snotek
105500021BSHG, Polyliner - .63 Snap-In
116714500Pin, Spring Clip
127500330Knob, Chute Crank (Compact)
138320900SPRG, Compression
146224400BLT-RDHDSQNK .38-16X2.50 G5 Y
155958500BLT-HEX .38-16X1.75 GR5 YWZC
166308800WSHR-LK .38X.094 REG YWZC
176542000NUT, LK-TOP-FLG .38-16 YWZC
187400034SCR-TAP .25-20X.50 HWH TR YWZ
196400917WSHR-FL-STL .406X1.25X.10 YWZC
206400009WSHR-THRST .625X1.00X.03
2152000100Pinion Gear W/ Bracket | Service Part

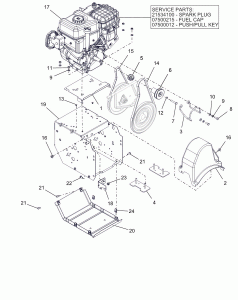

Frame And Engine – 22″ CE

IDParts NumberParts DescriptionNotesPurchase
14895151Baffle, Compact (Black)
23881000Cover, Compact Belt
34561800Finger, Belt
44334100Strap, Engine Bolt-Wldmt
552006600Sheave Kit- Sno-Tek
64827100Sheave, Auger 3/4In. Pm
75901401BLT-Hex .31-24X1.75 Gr5 YWZC
85947300BLT-Hex .31-24X.75 Gr5 YWZC
96307400WSHR-Lk .31X.097 Hvy YWZC
116437200Nut-Hex .31-18 YWZC
126307400WSHR-Lk .31X.097 Hvy YWZC
136800028Rvt-Pop .187X.250 (#64) YWZC
147200725V-Belt, Ha - Raw Edge Laminated
157200603V-Belt, 3L-Wrapped Clutching
167400108Scr, Tap .25-20 X.5 Captive
178200804Engine, Briggs - Snow 900 Recoil
1721534100Spark Plug | Service Part
177500215Fuel Cap | Service Part
177500012Push/Pull Key | Service Part
18657059WLDMT, Frame BRKT
1952006200Frame, Main - Weldment (Orange)
20492359Cover, Bottom
215900019BLT-Hex .25-20X.75 Hwh YWZC Gr5
226212200BLT-Rhdssqnk .31-18X.62 G5Yz
236543100Nut, Lk-Top-Flg .312-18 YWZC
247009000Nut, Rtnr .25-20 X .56

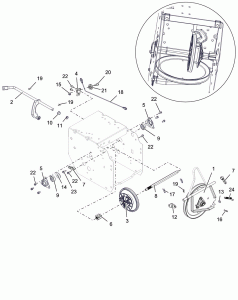

Friction Drive

IDParts NumberParts DescriptionNotesPurchase
152105000Plate, Swing-Assembly
24848100Arm, Shift - Small Dash (WLDMT)
34861600Disk, Friction - Assembly
4373051BRKT, Cable Pulley
5383000Flange, Brg
6493900Gear, 7T Pinion
73374500BSHG, Support - Swing Gate
84149500Shaft, Hex W/Spline
95435200BRG-Ball .437X1.375X.437
105500026Bushing, Polyliner - .50 Split
115500028BSHG, Polyliner - .50 Snap-In
125500113SPCR, Swing Gate
156500710Nut, Lk-Ctr-Flg .25-20 YWZC
166713500Pin, Hair Int .08X.18X1.18 YWZC
176714500Pin, Spring Clip
186900504Cable, Lower Traction (Cmpct)
196944800Clip, Spring
207000021Bolt, Shldr -.375 X .375 X .25-20
217300012Pulley, Cable
227400034SCR-Tap .25-20X.50 Hwh Tr YWZ
237400111SCR-Tap .25-20X.75 Hwh Tr YWZ
248300036SPRG, Extension

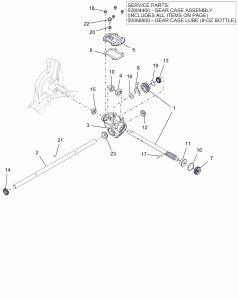

Gear Case – 22″

IDParts NumberParts DescriptionNotesPurchase
152003400Shaft, Worm - Only Available As Shaft And Gear Kit 52003400
23885800Shaft, Rake - 22In. (.750 Dia )
34276800Gear, Case Compact Machined
44277000Thrust, Collar .75In. Id Slipfit
54280251Cover, Top Compact Iron
64282400GSKT, Top Compact Gearcase
74302800Cover, Gear Case 1.50In.
84323600BSHG, Retainer Compact
105501020BSHG, Flg .755 X .878 X .75 X 1.25
115501108BSHG, Flanged .503X1.303X.62X1.465
125501106BSHG, Flanged .755X.878X.424X1.25
135600509Seal, Oil .748 X 1.125 X .312
145600508Seal, Oil .748 X 1.300 X .250
155600509Seal, Oil
165700212RG-RTNG-Int 1.500X.050
175800207Pin, Str .188 X 1.00 6150
185901510Bolt, Sems - .25-20X.50 Gr5 Ywzc
196400912WSHR-Fl-Stl, .760 X 1.225 X .032 Yz
206400920Washer-Flat-Stl, Seal
216609300Key, WDRF .19X.63 Hrd #61
227400110SCR -Rolok .38-16X.50 Hwh Ywzc
235501107BSHG, Flanged Compact, Right
2452004400Gear Case Assembly | Service Part (Includes All Items On Page)
2568800Gear Case Lube (8Oz Bottle) | Service Part

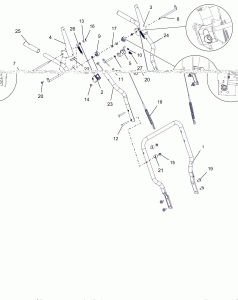

IDParts NumberParts DescriptionNotesPurchase
1597451Handlebar, Lower Compact
24310100Block, Clutch Handle
34310451WLDMT, Clutch Handle - LH
44310551WLDMT, Clutch Handle - RH
54320400Brkt, Interlock Arm
64320500Rod, Pivot - Interlock
74321500Rod, Paddle Mount - Long
84321600Rod, Paddle Mount - Short
94322100Cam, Interlock
105500020BSHG, Polyliner-.38 Snapin
116209300BLT, Rdhdxlsqnk .25-20X2.0 G5Yz
126221600BLT-Rdhdsqnk .31-18X2.25 G5 Y
136437300Wshr-Fl-Stl.281X.62X.065 Ywzc
146543500Nut, Lk-Top-Flg .25-20 Ywzc
156545400Nut-Lk-Nyl-Flg .31-18 Ywzc
166701900Pin-Hair Int .06X.18X.77
176714500Pin, Spring Clip
186900438Cable, Auger & Upper Traction
197028500BLT-Serhfwh .38-16X.75 Ywzc
207400034SCR-Tap .25-20X.50 Hwh Tr Ywz
217500005SPCR, Handlebar
227500103Strip, Edge - Clutch Handle
234318351Handlebar, Upper - RH
244318451Handlebar, Upper - LH
257500336Grip, Handle
268300527SPRG, Extension
278337000SPRG, Extension

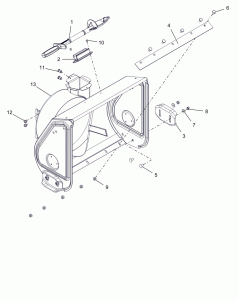

Housing – 22″

IDParts NumberParts DescriptionNotesPurchase
1170200Device,Snow Clean Out
2170300Mount, Snow Clean Out
32483859Shoe, Skid - Reversible
43884359Blade, Scr -22In. Compact
56200004BLT-Rhdssqnk .38-16X.75 G5YZ
66200209BLT, Rdhdsqshk Modified .31-18 X .62 YZ
76435700WSHR-Fl-Stl.38X.875X.083 YWZC
86529600Nut-Lk-Ctr .38-16 YWZC
96543100Nut, Lk-Top-Flg .312-18 YWZC
106800028Rvt-Pop .187X.250 (#64) YWZC
117001612Nut, Threaded Insert .38-16
127411500SCR-Tap .31-18X.50 Hwh Tr YWZ
1352002500Housing, Blower - 22In. With Decal

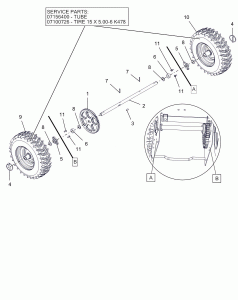

Wheels And Axle – 22″

IDParts NumberParts DescriptionNotesPurchase
1657800Spur, Gear 54T .75Id X 6.75Pd
2494200Shaft, Axle
36601200Key, WDRF .25X.750X.313 Sae91
47053700Pin, Lock .31X1.75
55500101BSHG, .75 X 1.25 X .65
65500140BSHG, Slv .766X1.125X.500
75800300Pin-Roll .188X1.25
86441400WSHR-Fl-Stl .754X1.125X.062 YWZC
97101229Tire/Wheel, Rh 13X4.00-6 Pin T2
107101228Tire/Wheel, Lh 13X4.00-6 Pin T2
117400034SCR-Tap .25-20X.50 Hwh Tr YWZ
127156400Tube | Service Part
137100726Tire 15 X 5.00-6 K478 | Service Part
